Unity Plugin

Airfox Arcade Plugin Guide for Unity

This tutorial provides step-by-step instructions to install, configure, and integrate the Airfox Arcade plugin into your Unity project. The plugin consists of two DLLs and requires some configuration to work seamlessly with WebGL and the Unity Editor.

info

Only Unity version 6 and above is formally supported by the Airfox Arcade plugin.

Installation

1. Add the Unity Package to Your Project

• In Unity, go to Assets > Import Package > Custom Package and select the downloaded Unity package.

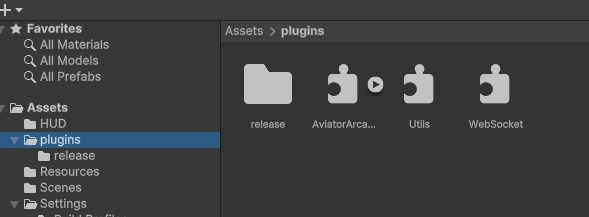

• The package will be imported into your project. Make sure it is in the plugins folder.

Configuration

1. Create an Airfox Arcade Account
   • Navigate to the Airfox Arcade website.
   • Register for an account.
   • Once registered, request developer access via your account settings.
2. Create a New Project
   • After logging into your Airfox Arcade account.
   • Create a new project.
   • Once the project is created, you will receive an API key. This key is essential for configuring the plugin.
3. Configure the Plugin

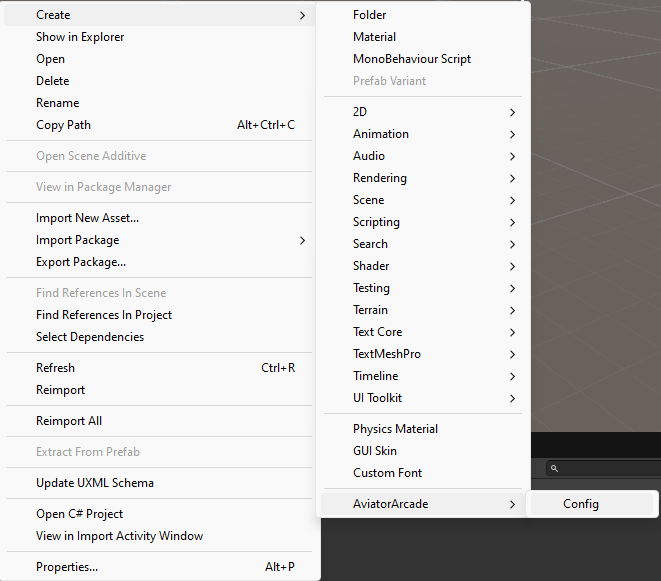

   • In Unity, create a Resources folder and create a configuration. Locate the plugin’s configuration menu. Navigate to Assets > Create > Airfox Arcade > Config.

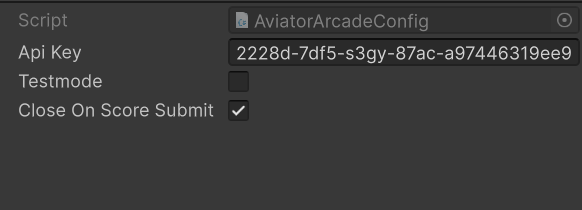

Open the configuration resource and enter your API key.

tip

If the Resources folder does not already exist, try creating a new one and placing the asset inside of it.

Integration

Initialize the Plugin

To initialize the Airfox Arcade API, create a new instance of AirfoxArcadeApiManager in your script:

// Example code snippet for initialization
AirfoxArcadeApiManager apiManager = AirfoxArcadeApiManager.Instance;

This initialization step ensures:

• The game validates the provided gameID and userID (automatically handled by Airfox Arcade).
• The system checks if the required payment in Airfox Tokens has been made to play the game.

Start the Game

Once everything is validated, call the startGame function at the appropriate point in your game (typically when gameplay begins):

// Example code snippet to start the game
apiManager.startGame();

Send the Score

At the end of the game, once the final score is known, call the SendScore function to submit the score to the Airfox Arcade platform:

// Example code snippet to send the score
apiManager.SendScore(finalScore);

This function sends the score to the platform, where it will be processed and registered. During this process, the platform performs several checks to ensure the score is valid and prevent invalid submissions.

Testing the Integration

• Use the Unity Editor to test the integration.
• Monitor the Debug Log for any errors or issues.
• Verify that the initialization, StartGame, and SendScore calls function as expected during gameplay.

With these steps completed, your Unity project is now fully integrated with the Airfox Arcade platform. You can focus on developing and testing your game with confidence. Happy coding!

Troubleshooting

Set DLL Compilation Targets

Locate the two DLLs included in the package:

• One DLL is in the Release folder.
• The other DLL is designed for use in the Unity Editor.
• Set their compilation targets:

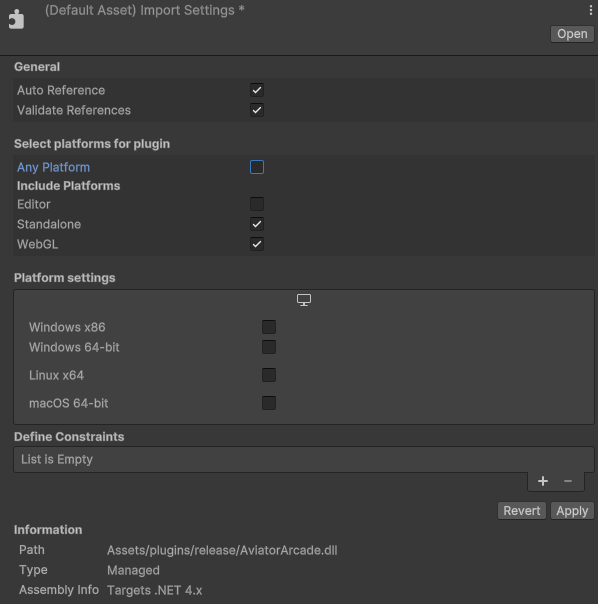

• Release DLL (WebGL)
  • Right-click on the DLL in the Unity Project window.
  • Select Properties or Inspector.
  • Ensure the DLL is set to compile only for WebGL by adjusting the platform settings.

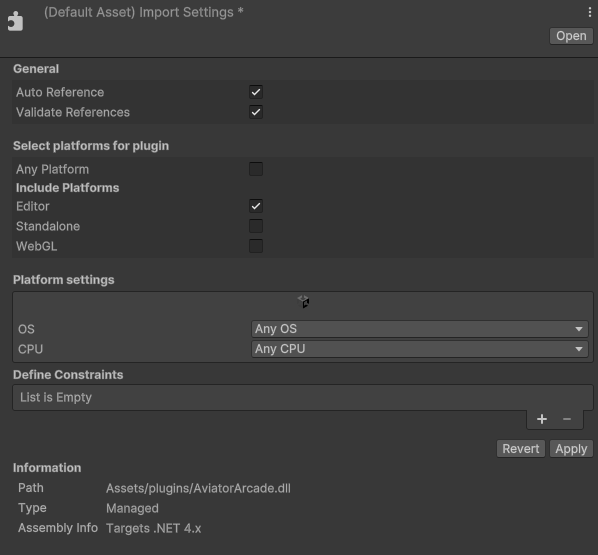

Editor DLL

Right-click on the Editor-specific DLL. Set this DLL to compile only for the Unity Editor.

Plugin Reference

Functions

public async void startGame()
Starts the game

public async Task<Nft[]> GetNFTs()
Returns current user's NFTs

public async Task<GameInfo> GetGameInfo()
Returns current game information

public async Task SendScore(int score)
Sends score to the Airfox Arcade API

Types

public class GameInfo
{
    public string _id;
    public string projectId;
    public string projectVersionId;
    public string user;
    public bool isStarted;
    public bool isStopped;
    public string userId;

    public GameInfo(string _id, string projectId, string projectVersionId, string user, bool isStarted, bool isStopped, string userId)
    {
        this._id = _id;
        this.projectId = projectId;
        this.projectVersionId = projectVersionId;
        this.user = user;
        this.isStarted = isStarted;
        this.isStopped = isStopped;
        this.userId = userId;
    }
}

public class Nft
{
    public string name;
    public string contractAddress;
    public string tokenId; // Changed to string to match the JSON
    public string image; // Changed to string to match the JSON

    public Nft(string name, string contractAddress, string tokenId, string image)
    {
        this.name = name;
        this.tokenId = tokenId;
        this.contractAddress = contractAddress;
        this.image = image;
    }
}
